| Precipitate Methods | Products | Installation Picture &
Reference (click on!!) |
|---|---|---|
 Electrical
Method |
Screw Type
E.P |
|
|
Hybrid Type
E.P |
| |
| Centrifugal
Method |
MULTI
CYCLONE |
|
|
SINGLE
CYCLONE |
| |
| Emulsion Method
|
Emulsifier -
Auto |
|
|
Emulsifier -
Manual |
|
| Year | C o n t e n t s |
|---|---|
| 1995.5 | Publication of "Air Pollution Control Technology About Heavy Oil Boiler" |
| 1996.7 | Completely development of "High Efficiency Electro Cyclone Preciptator With Multi-Cyclone" |
| 1997.2 | Completely development of "Screw Type ESP" - STEP |
| 1998.11 | Studying of "Electrostatic Precipitator With Use Plasma For Treat Hazardous Gas", and now first stage is finished. |

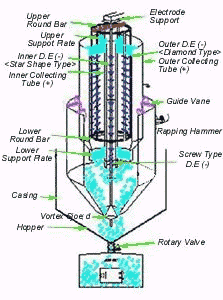

| 1999.11 | Completely development of "Cyclo ESP" - Hybrid Type ESP (HTEP) |
| 2000. Now | Being under investigation and development for Degas System |
| Year | Classification | C o n t e n t s | Registration Number |
|---|---|---|---|
| 1979.5 | Patent | Emulsifier Device With Water And Heavy Oil Mixture | No. 6392 |
| 1997.8 | Utility Model | Electro-Cyclone with multi-cyclone | No. 108055 |
| 1998.10 | Utility Model | Screw Type Electrostatic Precipitator | No. 133366 |
| 1998.10 | Utility Model | Hazardous Gas Treatment Precipitator Use Plasma | No. 133367 |
| 2000.3 | Utility Model | Cyclo Electrostatic Precipitator | No. 0185302 |
| 2002.7 | Patent | Tube type Electrostatic Precipitator | No. 0347705 |
